Seven machines, matched feeder to bagger.

Each model is a feeder and a bagger built together as one machine. Specifications below are as supplied; anything can be adapted to your product and film.

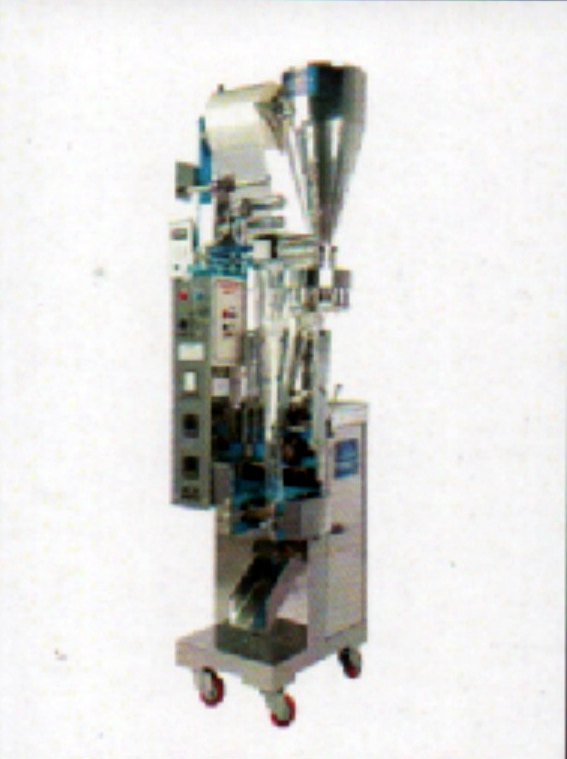

PPRP-100 PPRP-100 form fill and seal cup filler machine
Form fill & seal · cup filler

Form Fill & Seal Cup Filler Machine

Pouch capacity
10–50 g and 50–200 g
Output
25–45 BPM
Filling type
Cup filler
Sealing type
Fin seal (centre seal / 3 side seal)
Packaging material
Laminate or any heat sealable packing material
Machine weight
250–350 kg approx.
Width
600 mm
Length
1800 mm
Depth
600 mm (adjustable)

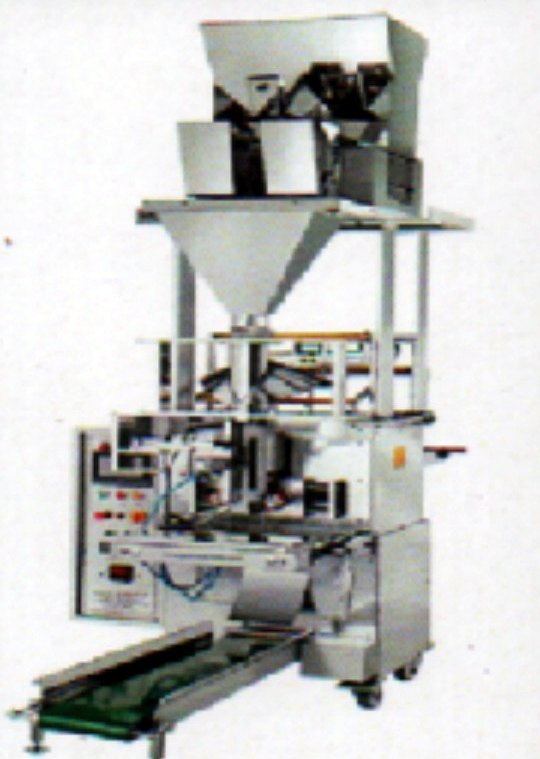

PPRP-200 PPRP-200 two head weigher full pneumatic packing machine
Full pneumatic · two head weigher

Two Head Weigher Full Pneumatic Machine

Capacity
10–250 g
Speed
20–24 bags/min, varies with the nature of the product and fill range
Usage
Liquid
Automation grade
Automatic pouch
Filling system
Two head weigher
Sealing
Centre seal
Film size
100–400 mm width × 100–250 mm
Film roll type
Laminated film in roll, e.g. aluminium foil
Film roll size
OD 250–400 mm max.
ID film
Reel pipe 75 mm min.
Machine size
1200 × 1400 × 2500 mm (L × W × H)

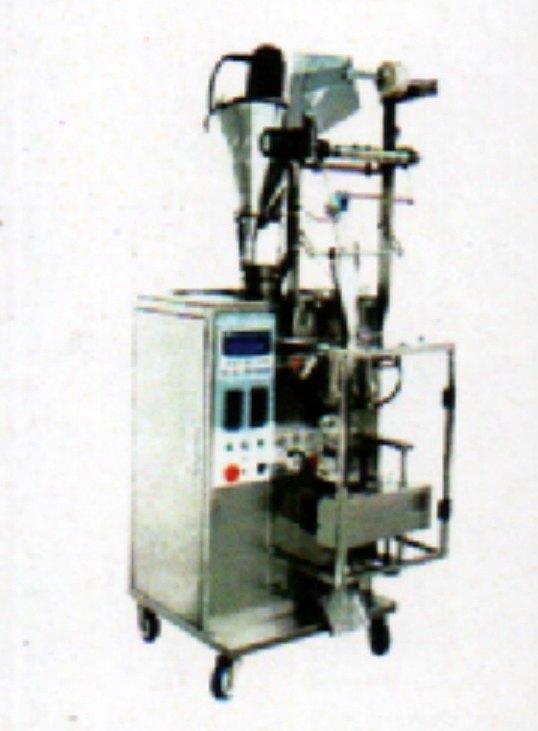

PPRP-240S PPRP-240S full pneumatic machine with auger filler system
Full pneumatic · auger filler

Full Pneumatic Machine with Auger Filler System

Pouch capacity
50–500 g
Capacity
500 g
Filling type
Auger
Usage
Powder form
Machine type
Fully automatic
Material
Stainless steel
Minimum order
1

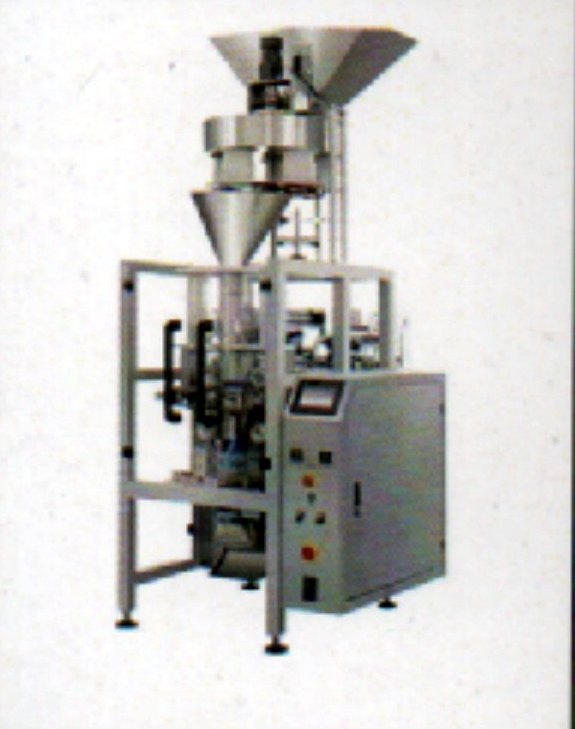

PPRP-300 PPRP-300 collar type cup filler machine
Collar type · cup filler

Collar Type Cup Filler Machine

Pouch capacity
20 g to 1 kg
Machine speed
60–120 pouches/min
Automation grade
Semi-automatic
Roll width
120–450 mm
Main motor
5 HP
Voltage
220 V, 50 Hz
Phase
3

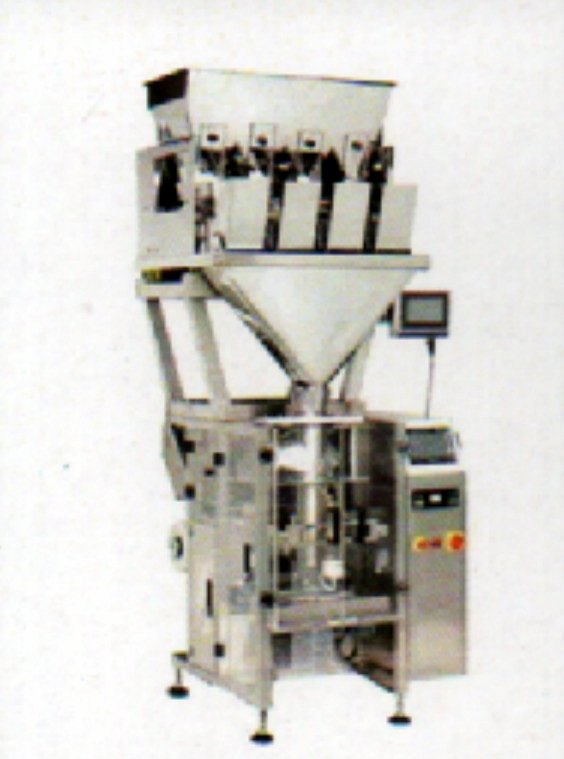

PPRP-400 PPRP-400 four head weigher collar type machine
Collar type · four head weigher

Four Head Weigher Collar Type Machine

Pouch capacity
10–1000 g
Packaging capacity
500–1000 pouches per hour
Usage
Powder, granules, frymus
Brand
Fuji
Machine power
1–2 HP
Voltage
220 V, three phase
Material
Stainless steel
Minimum order
1
PPRP-440S PPRP-440S collar type machine with servo auger filler system and screw conveyor
Collar type · servo auger filler

Collar Type Machine with Servo Auger Filler System

Packing range
10–100 g, 100–250 g, 500 g–1 kg, 1–5 kg
Pack capacity
30–80 ppm, depending on the product
Filling accuracy
±0.5% (depends on product)
Usage
Besan, spice powder, wheat flour, maida, suji, rava
Brand
Fuji / Mitsubishi
Filling system
Servo auger
Sealing system
Pneumatic / servo driven heat sealers
Seal type
Centre / side seal
Pulling mechanism
Servo / AC motors
Unwinding system
Motorised
Control system
Programmable logic control
Temperature controller
PID, through PLC
Packaging material
Heat sealable laminated roll
Body material
SS / MS
Surface treatment
Powder coated
Machine weight
700 kg approx.
Dimensions
2100 × 1300 × 3000 mm approx.
Voltage
440 V
Phase / power
Three phase, 5 kW
Compressed air
8 CFM @ 6 bar
PPRP-1000 PPRP-1000 fourteen head multihead weigher collar type machine with platform
Collar type · 14 head multihead weigher

14 Head Multihead Weigher Collar Type Machine

Weighing range
10–1000 g
Max machine speed
Up to 120 ppm
Speed
60–80 pouches per minute
Volume
3000 cc
Machine type
Automatic
Sealing type
Servo operated
Voltage
220 V / 230 V
Packing material
All types of granules
Film size
100–450 mm width × 100–250 mm length
Film roll type
Heat sealable laminated film
Film
Multilayer (2 / 3 / 4 layers), virgin films also
Power consumption
Multihead 3 ph 3.5 kW · bucket elevator 1 ph 1 kW · 1 ph 0.5 kW
Air required
7 cfm @ 7 kg
Dimensions
5450 × 2400 × 4200 mm approx. (W × D × H)
Machine weight
Bag meter with platform 1100 kg · multihead 200 kg · bucket elevator 700 kg
Production capacity
20 units per month
Delivery time
30 days after confirmation
Payment terms
L/C (letter of credit)
Port of dispatch
New Delhi
Packaging details
Wooden crates
Minimum order
1

Ordering

Terms and conditions

  1. Delivery will be made within 30–45 days following receipt of advance payment from the client.
  2. Delivery will be made F.O.B. the Propack Packaging facility.
  3. One year onsite warranty against any manufacturing defect is provided by Propack Packaging.
  4. A quotation may be accepted to form a binding contract by either signature below and payment to Propack Packaging for the items listed in the quote prior to the expiration date, or issuance of a purchase order referencing the quote and these terms prior to that date.
  5. Payment terms are 70% advance and 30% before delivery.

Faster delivery is possible when required by the customer.

Next step

Tell us the product, the pack weight and the output.

We will quote the machine that fits, with the film and add-ons it needs.

Call 98110 56327
